Available Features:

• Arm Retraction For Part Loading
• 2-Axis Centerline Adjustment
• Position Feedback Sensors
• Side Mount Cylinder
• Air Purge Port
• Suitable for both traditional and medical tool grinding applications

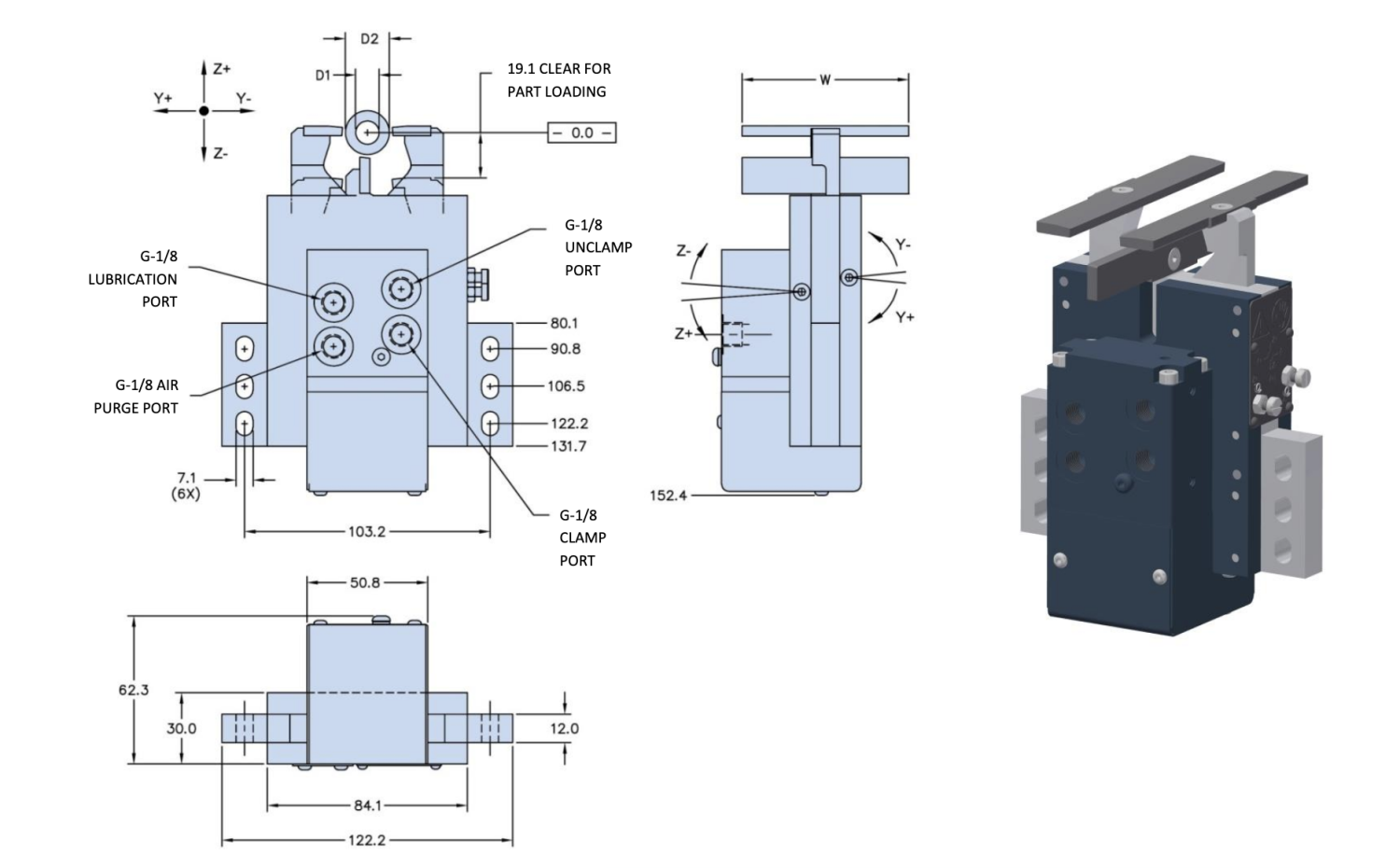

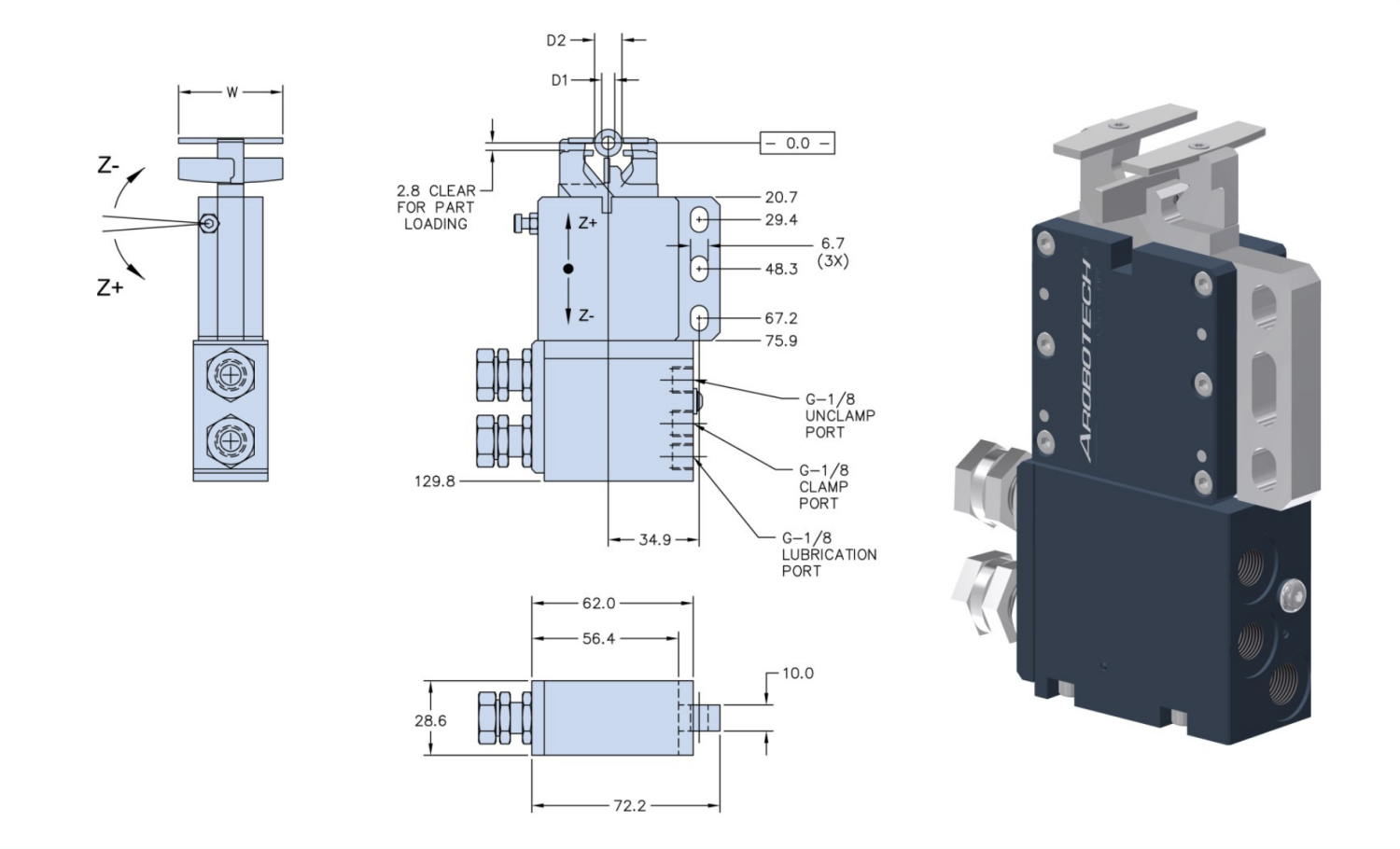

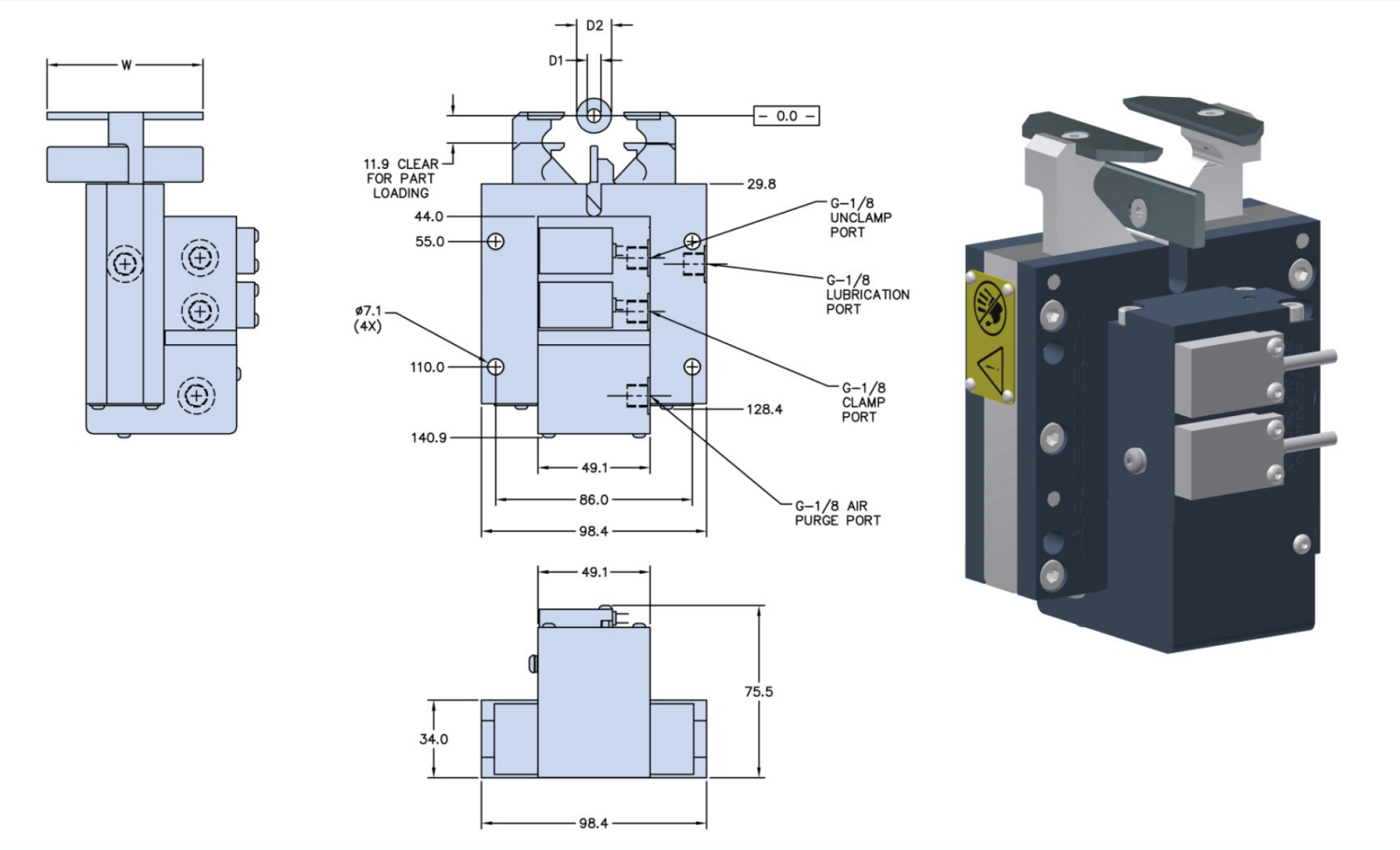

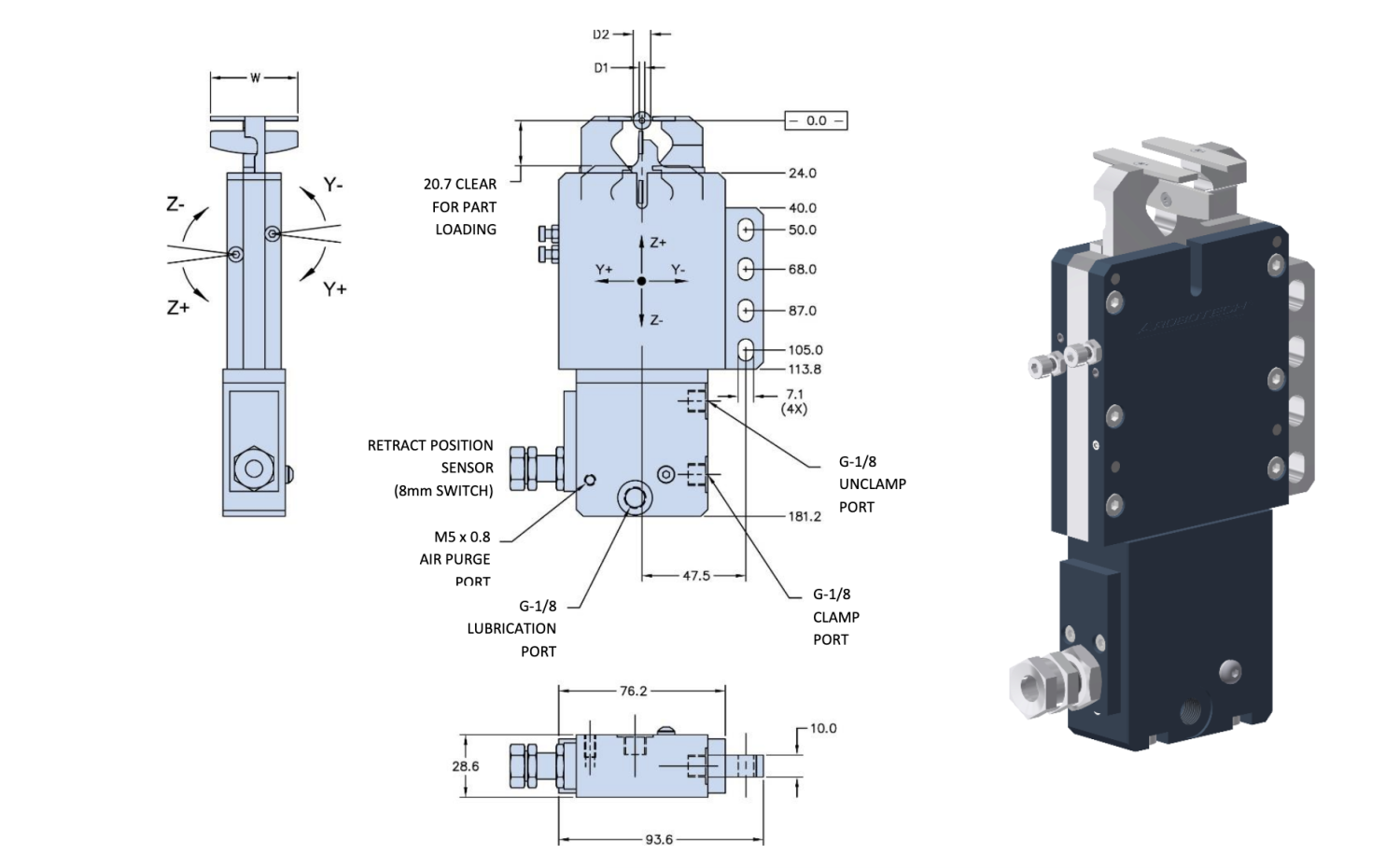

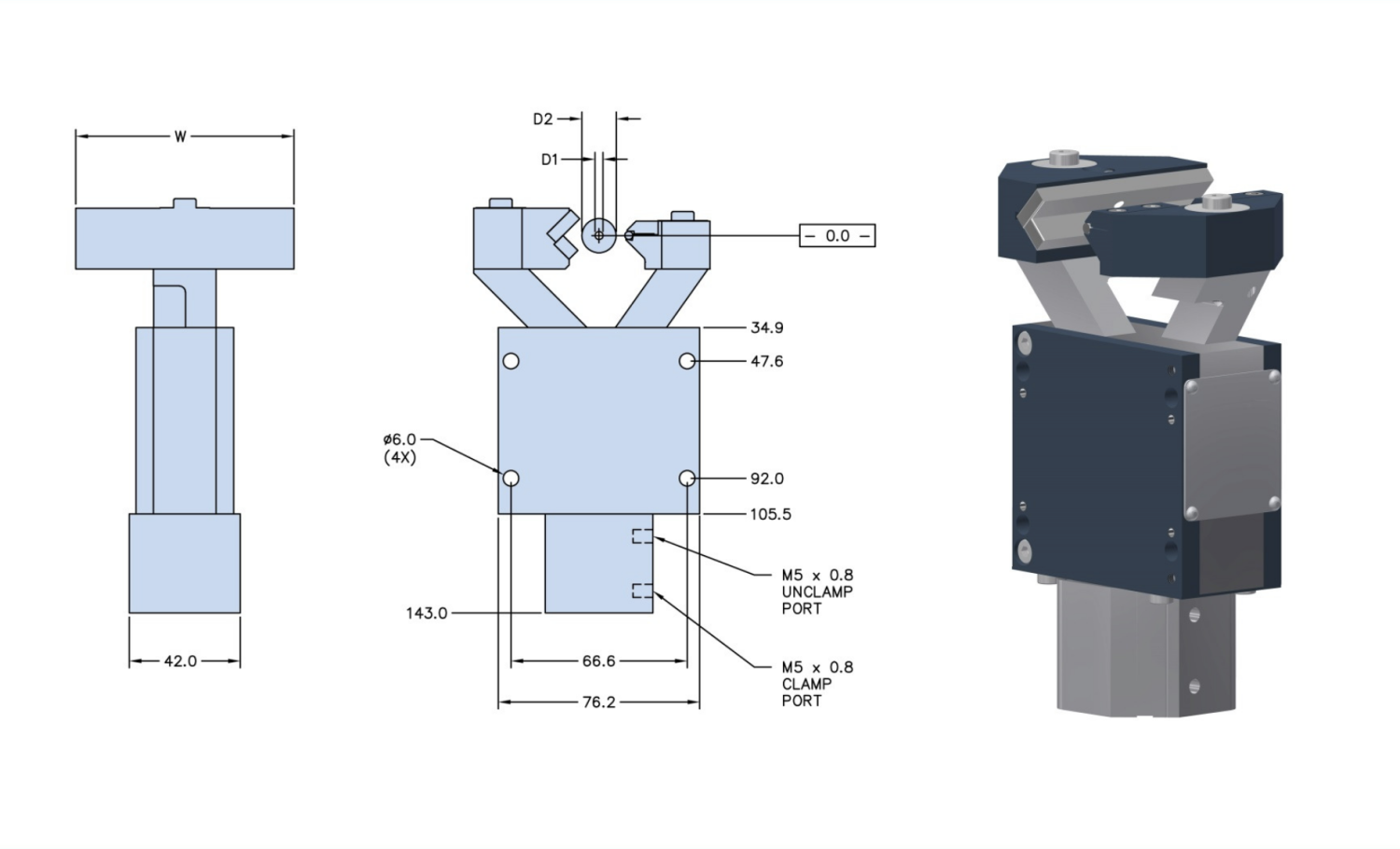

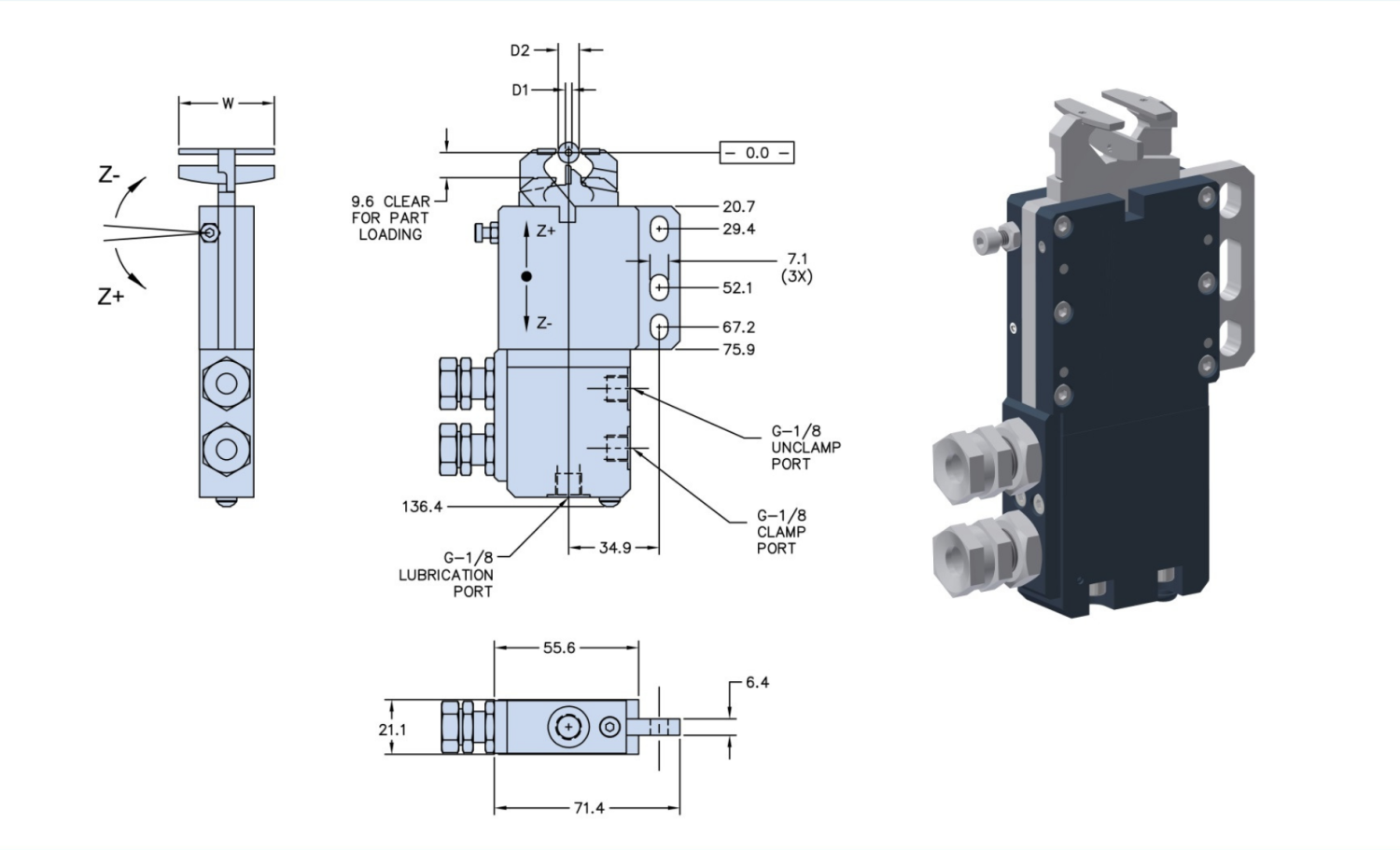

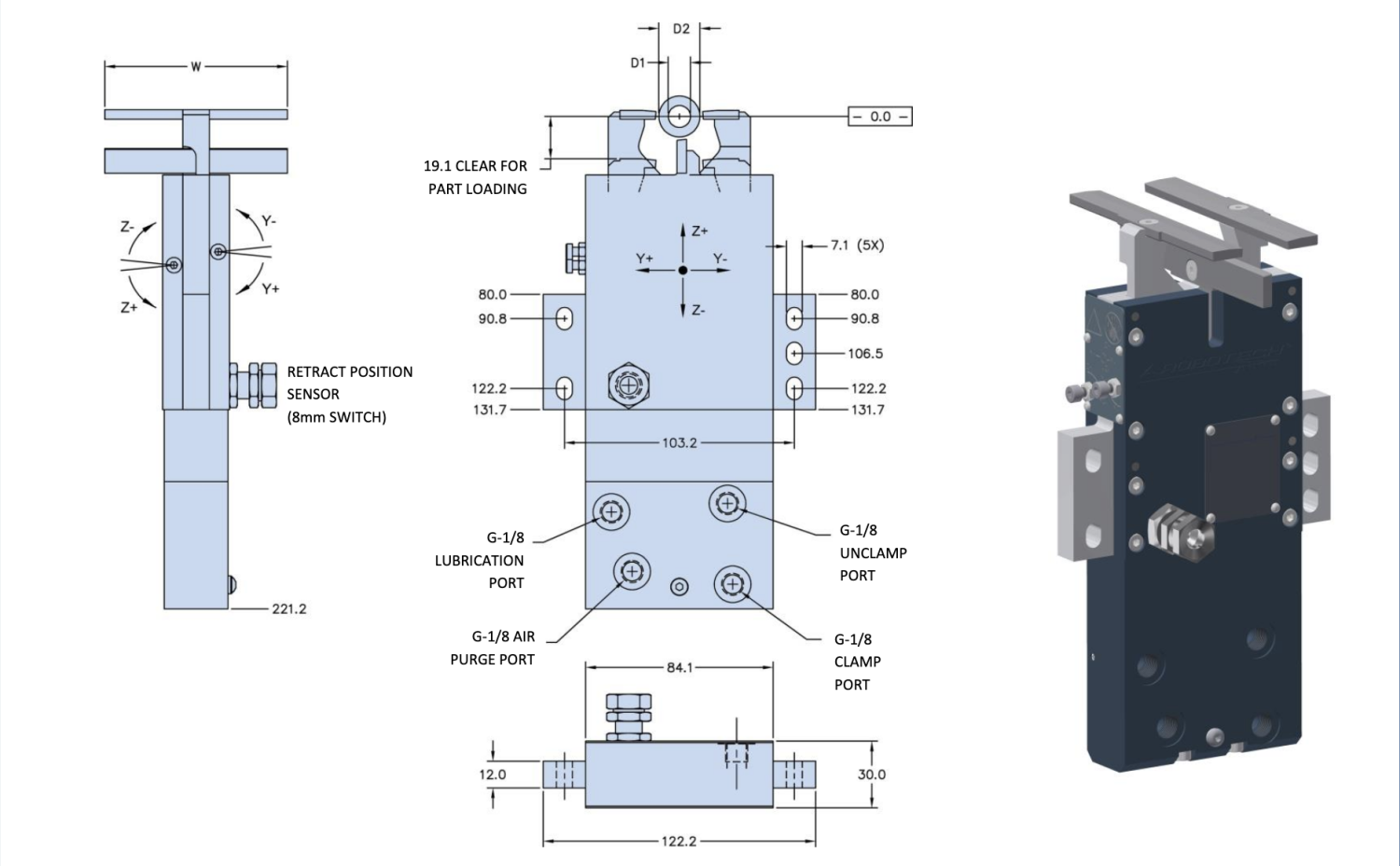

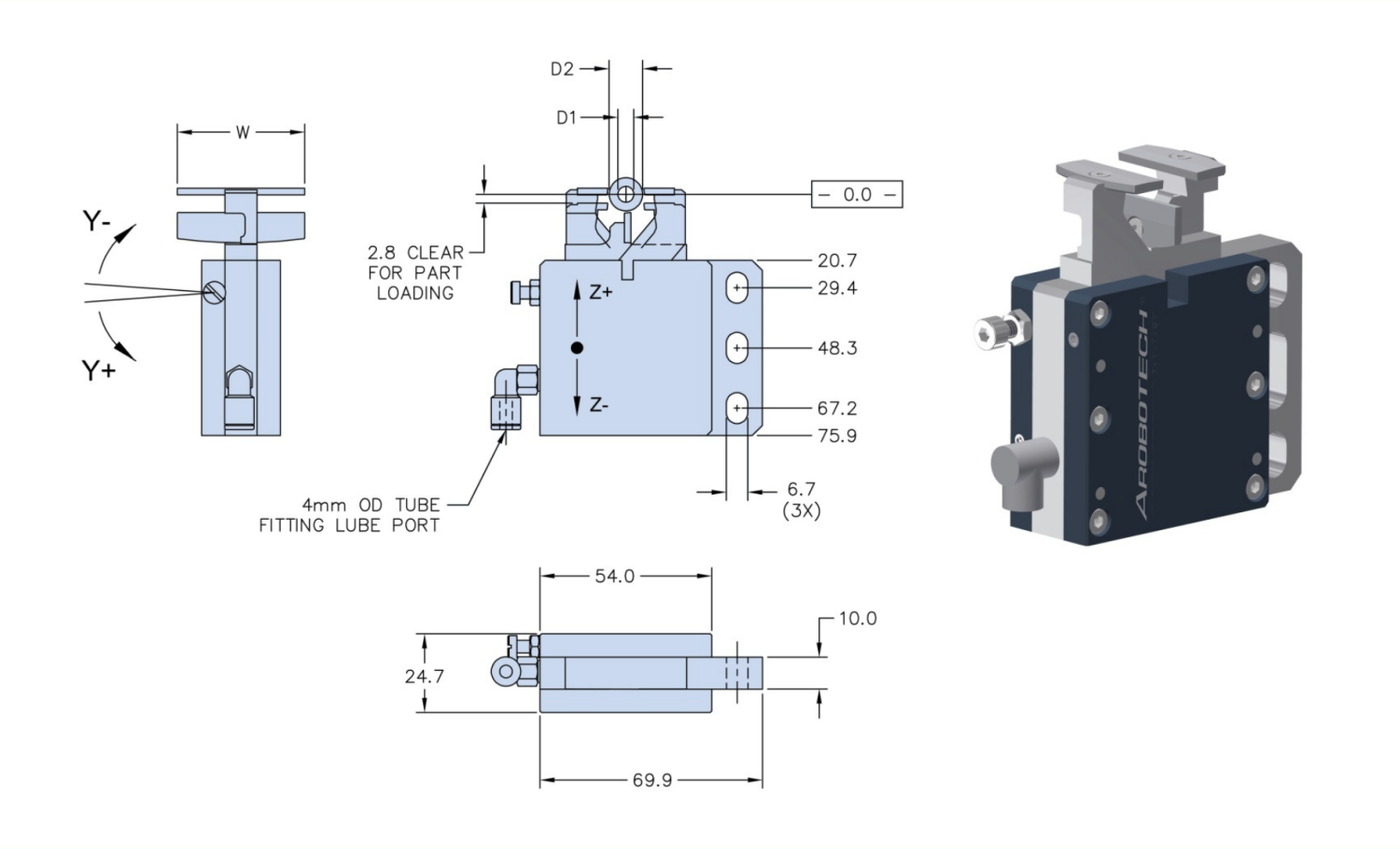

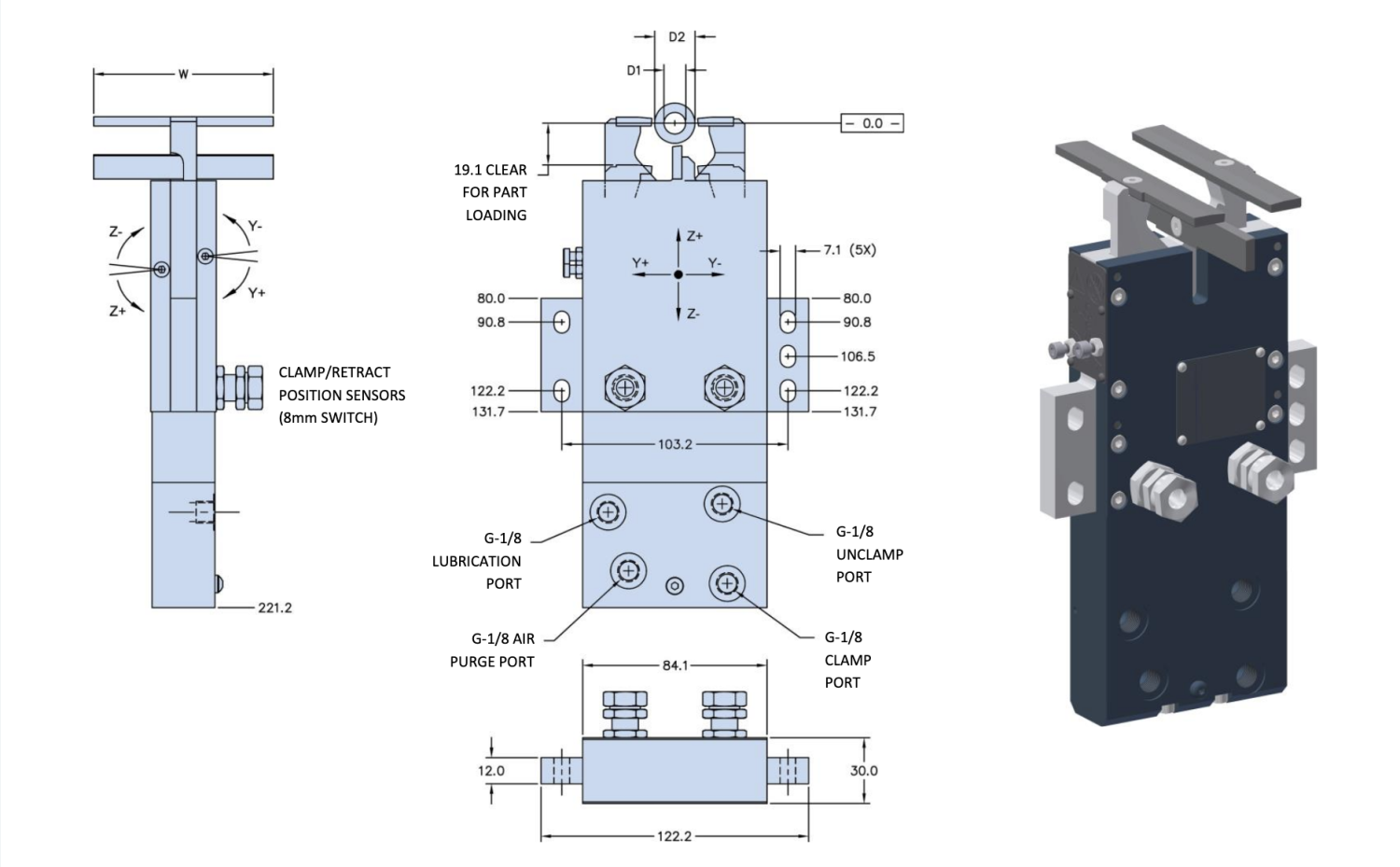

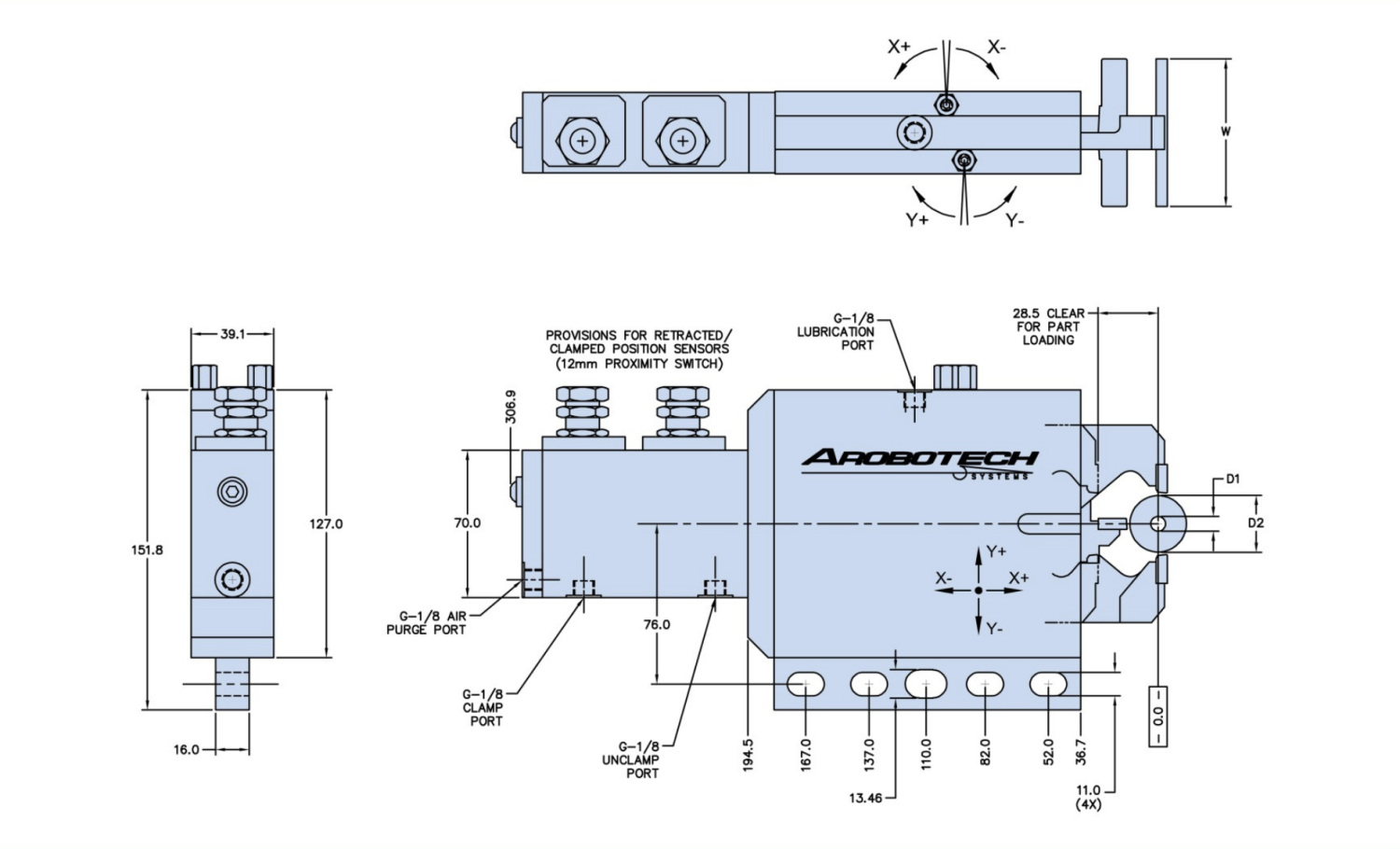

Grinding AUTO REST ^© is an automatic, self-centering, three-point steady-rest used to support and stabilize tools during manufacturing. Low profile over-center wear pads hold the part securely while providing wheel clearance for flute grinding. Automatic arm retraction draws the arms into the body when opened for easy part loading.
